Case Report

Volume 3, Number 3, June 2012, pages 142-145

Superior and Inferior Extension of Carotid Body Tumors

Paragangliomas are rare tumors that arise from widely dispersed specialized neural crest cells that are associated with autonomic ganglia. Carotid body tumors represent 60 - 70% of head and neck paragangliomas [1-2]. A carotid body paraganglioma arises within the carotid body and characteristically splays the bifurcation of the common carotid artery (CCA). Carotid body tumors can be diagnosed by B-mode sonography with color-coded Doppler sonography, computed tomography (CT), magnetic resonance imaging (MRI) and digital substraction angiography (DSA). Our case demonstrates an extension of carotid body tumor superior and inferior to the bifurcation of the common carotid artery beyond the main bulk of the tumor with emphasis on the role of computed tomography angiography (CTA) and B-mode sonography with color-coded Doppler sonography as non-invasive modalities in visualizing the extension of carotid body tumors.

We describe herein a case of a 53-year-old male who presented with a painless neck mass that he first noticed 30 years ago. The initially small mass has progressively grown and is now accompanied by night sweats and dizziness. The patient denies blurry vision, parasthesia, paralysis, palpitations, difficulty swallowing, or changes in voice.

Physical examination showed a right neck mass about 4 x 3 cm. It was non-tender, and does not move with swallowing. No lymphadenopathy was appreciated. Cranial nerves I-XII were grossly intact except for decreased sensation in his right lower mandible and the superior right aspect of his neck.

CT angiography of the neck demonstrated an avidly enhancing mass splaying the right external carotid artery (ECA) and the internal carotid artery (ICA). The mass begins 1.6 cm below the right CCA bifurcation with the bulk of the tumor measuring 4.3 x 3.4 x 5.8 cm. There was additional tumor projecting approximately 1.6 cm above the dominant mass. The right internal jugular vein is compressed (Fig. 1a-c).

Click for large image

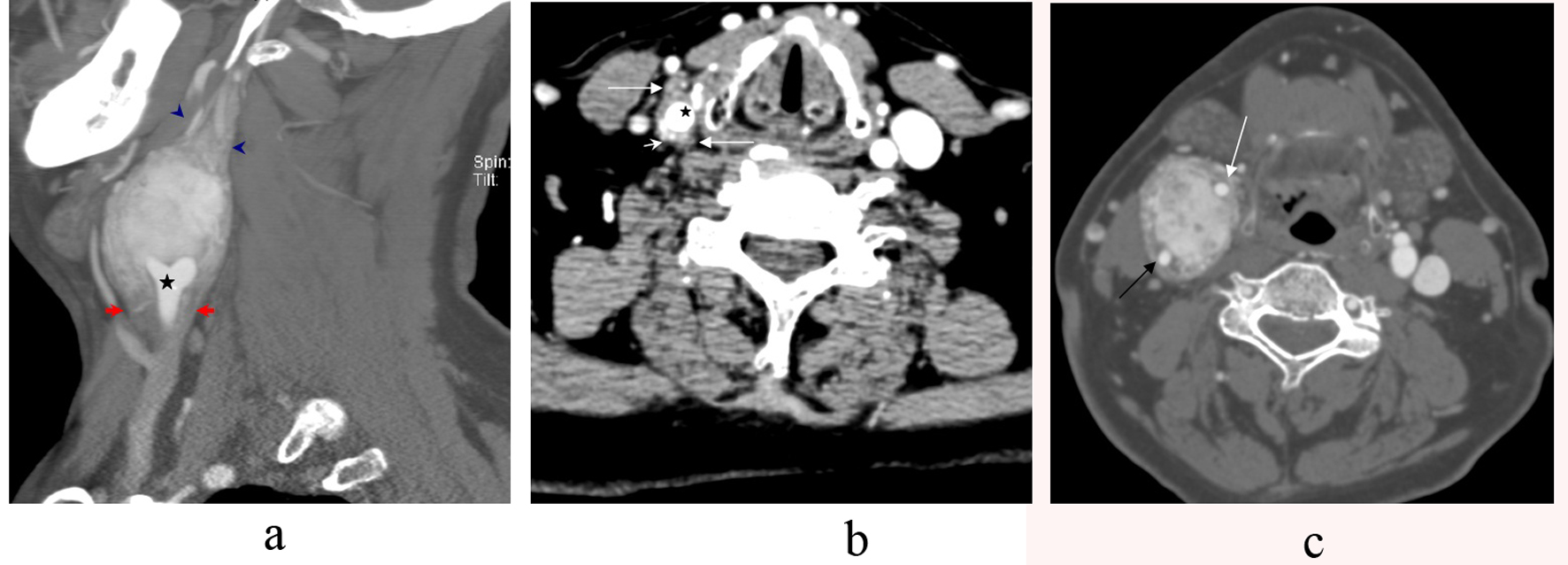

Figure 1. a-c. CT Angiography sagittal section showing a large carotid body tumor splaying the external carotid artery (ECA) and the internal carotid artery (ICA) at the level of th common carotid bifurcation (star). The tumor notably extends inferiorly 1.6 cm below the common carotid bifurcation (arrows). It also extends approximately 1.6 cm superiorly above the main bulk of the tumor (arrowhead) (a). Axial CT Angiography of the neck showing the tumor (long arrows) wrapping the common carotid artery (star) below the bifurcation with avid vascularity of the tumor (short arrows) (b). Axial CT Angiography section demonstrating an avidly enhancing mass splaying the internal carotid artery (black arrow) and the external carotid artery (white arrow) (c).

B-mode sonography showed a solid, well-defined, and hypoechoic tumor splaying the ICA and ECA (Fig. 2a). Color flow Doppler sonography showed also splaying of the internal and external carotid arteries by the mass with intratumoral vascularity (Fig. 2b-d).

Click for large image

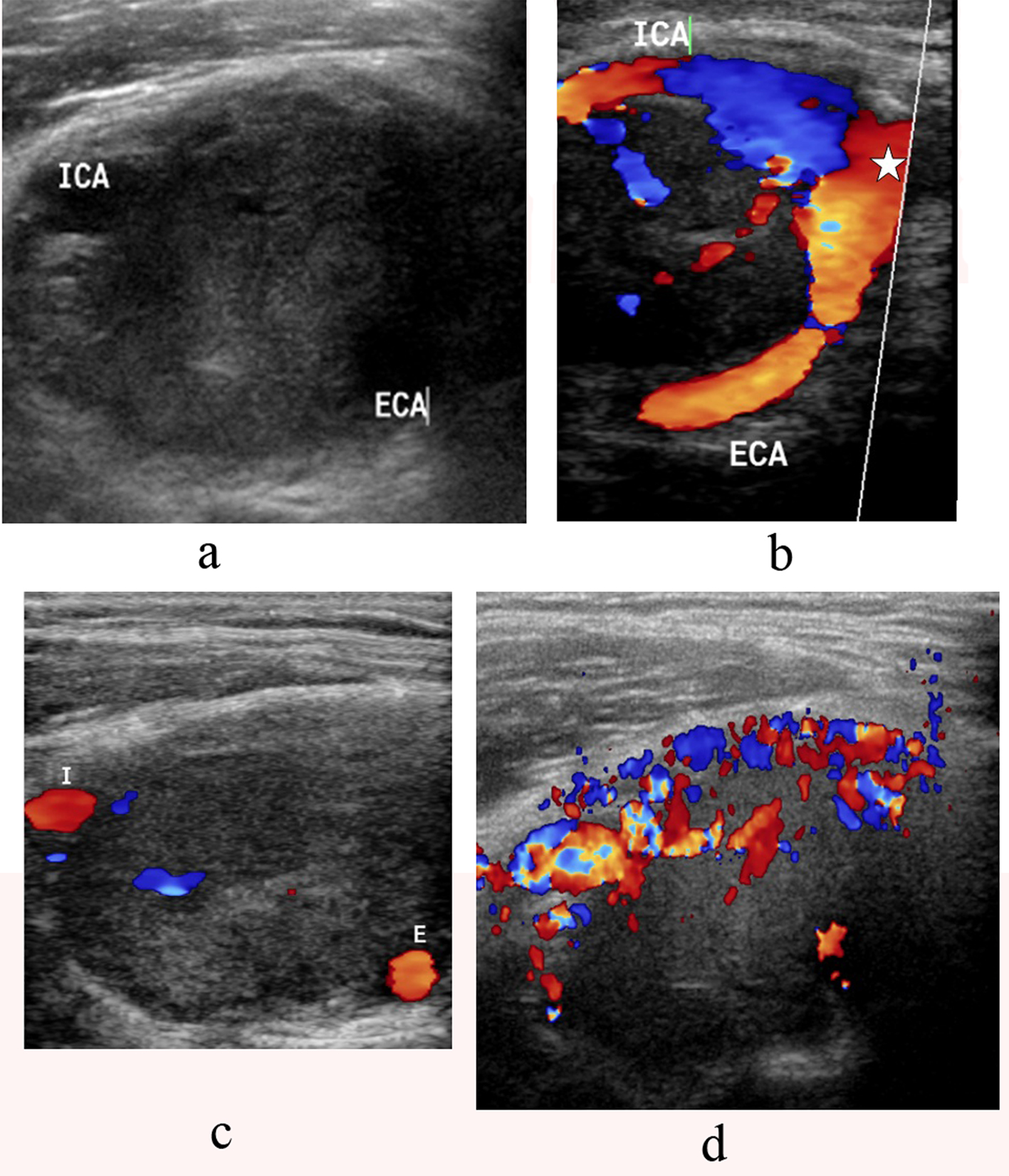

Figure 2. a-d. B-mode sonography showing a solid, well-defined, and hypoechoic tumor splaying the internal carotid artery(ICA) and external carotid artery (ECA) (a). Color flow Doppler sonography demonstrates a large mass at the carotid bifurcation. There is splaying of the internal carotid artery (ICA) and the external carotid artery (ECA) starting from the level of the common carotid bifurcation(star) (b, c) with high vascularity (d).

Carotid body tumors can be diagnosed by B-mode sonography with color-coded Doppler sonography, computed tomography (CT), magnetic resonance imaging (MRI) and digital substraction angiography (DSA). B-mode sonography typically shows a solid, well-defined, and hypoechoic tumor. Color Doppler imaging in most cases, but not all, reveals intratumoral hypervascularity. B-mode sonography and color Doppler imaging can both display the splaying of the carotid bifurcation with displacement of the external carotid anteriorly and both the internal carotid and the internal jugular vein posteriorly [3-4].

CT Angiography is capable of showing the highly vascular tumor as a well-defined soft-tissue mass within the carotid space of the infrahyoid part of the neck with characteristic splaying of the carotid bifurcation. The homogeneous and intense enhancement following intravenous administration of contrast material is due to the underlying hypervascularity of the tumor. Splaying of the carotid artery bifurcation has classically been described on conventional angiography and is known as “Lyre” sign [5-7]. This sign has also been described on multi-detector computed tomography [8]. Superior extension of the tumor into the suprahyoid part of the neck is seen in 8% of the cases [9].

Digital Subtraction Angiography (DSA) is an invasive modality to diagnose carotid body tumors, but is more important for therapeutic purposes. It provides endovascular access for possible tumor embolization and identifies the blood supply and flow dynamics of the tumor. This would enable the surgeon to locate displaced vessels and identify more unpredictable and less accessible feeding vessels. Moreover, later phases of the arteriogram visualize the venous outflow, which provides information to the surgeons so that they can preserve the venous drainage until the final stages of tumor mobilization which results in decreased intraoperative blood loss [10].

In summary, ultrasound is a non-expensive, non-invasive modality that can be used as a first step to diagnose carotid body tumors. CT Angiography and MRI can show the extension of the tumor. Conventional angiography is an invasive modality for diagnosis, but is more important for embolization and preoperative evaluation. Our case emphasizes the utility of computed tomography angiography (CTA) and B-mode sonography with color-coded Doppler sonography as non-invasive modalities in visualizing the extension of carotid body tumors.

Acknowledgments

Work done at University of Missouri School of Medicine, Columbia, MO. Dr Mark Janzen from the Department of Vascular Surgery for participating in the diagnosis and follow up of the patient.

Conflict of Interest

No conflict of interest.

Grant Support

No Funding.

1. Sobol SM, Dailey JC. Familial multiple cervical paragangliomas: report of a kindred and review of the literature. Otolaryngol Head Neck Surg. 1990;102(4):382-390.
   pubmed
2. Sykes JM, Ossoff RH. Paragangliomas of the head and neck. Otolaryngol Clin North Am. 1986;19(4):755-767.
   pubmed
3. Steinke W, Hennerici M, Aulich A. Doppler color flow imaging of carotid body tumors. Stroke. 1989;20(11):1574-1577.
   pubmed doi
4. Stoeckli SJ, Schuknecht B, Alkadhi H, Fisch U. Evaluation of paragangliomas presenting as a cervical mass on color-coded Doppler sonography. Laryngoscope. 2002;112(1):143-146.
   pubmed doi
5. Defraigne JO, Sakalihassan N, Antoine P, Thiry A, Limet R. Carotid chemodectomas. Experience with nine cases with reference to preoperative embolization and malignancy. Acta Chir Belg. 1997;97(5):220-228.
   pubmed
6. Laube HR, Fahrenkamp AG, Bocker W, Scheld HH. [Glomus tumors: a diagnostic and surgical challenge?]. Z Kardiol. 1994;83(5):373-380.
   pubmed
7. Por YC, Lim DT, Teoh MK, Soo KC. Surgical management and outcome of carotid body tumours. Ann Acad Med Singapore. 2002;31(2):141-144.
   pubmed
8. Venkatanarasimha N, Olubaniyi B, Freeman SJ, Suresh P. Usual and unusual causes of splaying of the carotid artery bifurcation: the Lyre sign—a pictorial review. Emerg Radiol. 2011;18(1):75-79.
   pubmed doi
9. Som PM, Biller HF, Lawson W. Tumors of the parapharyngeal space: preoperative evaluation, diagnosis and surgical approaches. Ann Otol Rhinol Laryngol Suppl. 1981;90(1 Pt 4):3-15.
   pubmed
10. Persky MS, Setton A, Niimi Y, Hartman J, Frank D, Berenstein A. Combined endovascular and surgical treatment of head and neck paragangliomas—a team approach. Head Neck. 2002;24(5):423-431.
    pubmed doi
